• Floor drain Vieser One DN50 1×32 extra low
  • Floor drain Vieser One DN50 1×32 extra low
  • Floor drain Vieser One DN50 1×32 extra low
Vieser

Floor drain Vieser One DN50 1×32 extra low

Price: 44,00 € 4400 116,18 € 11618
Qty: pcs
Vieser One floor drain DN50 1×32 extra low
Toimituskulut: 9,9 €
Toimitusaika: 2-3 business days
Floor drain Vieser One DN50 1×32 extra low

Vieser no 6004512
EAN 6430066742325
LVI 3317307
Material Polypropylene (PP)
Packaging (box/pallet) 10/120
Discharge 1.2 l/s

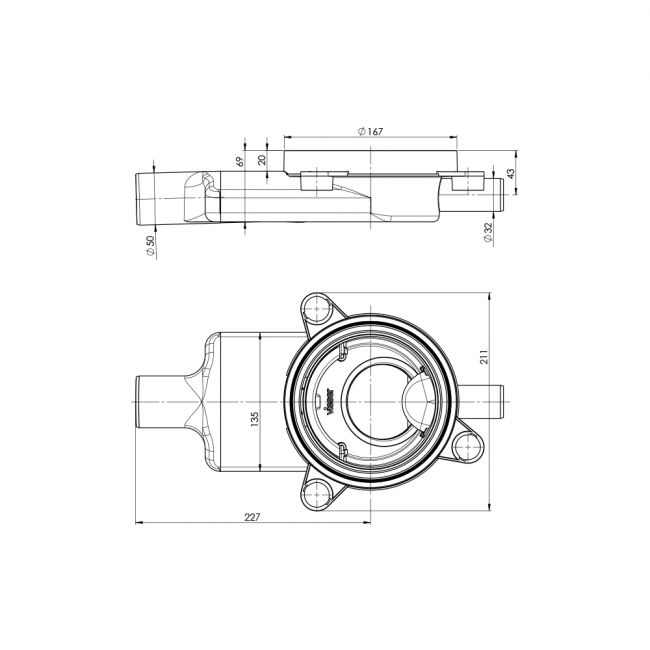

Product dimensions 211 x 355 x 69mm
Product weight 0.5 kg
Floor material Tile, Plastic mat, Mass



Vieser One floor drain DN50 1×32 extra low

FLOOR DRAINS

The Vieser One horizontal floor drain DN50 extra low has a height of just 69 mm. The drain has a 50 mm outlet and one 32 mm openable side inlet. Suitable for use in showers and bathtubs.

  • Type approved
  • Removable membrane water trap
  • High flow rate
  • Compatible with all Vieser extension rings, the distance ring, membrane flange and gratings/covers

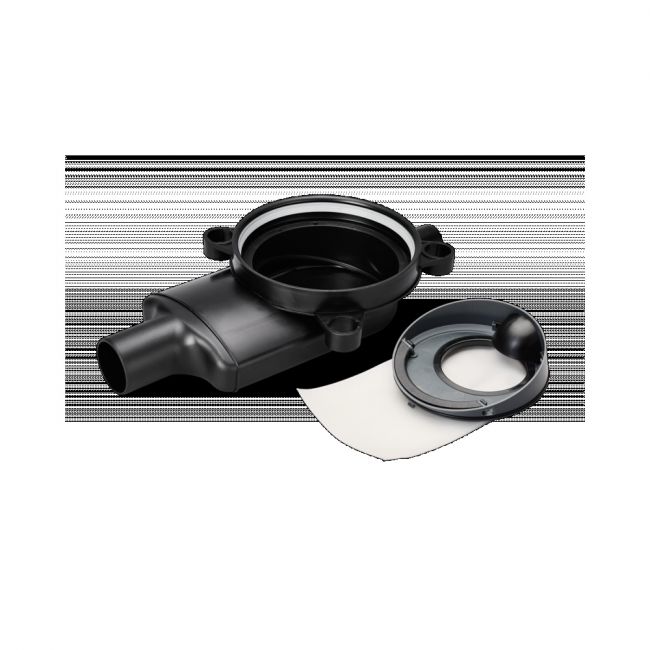

The package includes a drain, water trap, casting shield, clamping ring, seal and a tool for installing the clamping ring. Please see the structural drawings for different floor structures in our material bank.
