Freestanding wood stove ROLLO
MAXIMUM USE OF ENERGY
The combustion chamber and the body of the furnace are made of steel intended for operation at elevated temperatures.
Combustion of fuel particles thanks to two deflectors that extend the exhaust path.
Triple aeration system for the combustion chamber: primary air - supplied under the grate; secondary air is supplied through openings in the rear wall. In addition, the insert is equipped with a clean glass system - air curtain.
Effective combustion and longer maintenance of temperature thanks to the TERMOTEC lining of the combustion chamber - a heat-accumulating material that increases the temperature in the chamber.
Built-in air intake from the outside fi 100, which provides fresh air to the furnace from the outside of the building, which results in better combustion and greater comfort of use.
Removable ash pan without removing the grate. The grate is made of cast iron.
GREEN COMBUSTION
The device meets the requirements of Ecodesign and the BImSchV 2 standard, setting the maximum CO emission.
SAFETY AT THE HIGHEST LEVEL
The front of the insert is equipped with heat-resistant ceramics that can withstand temperatures up to 660°C.
The perforated construction of the handle causes its natural cooling. The excellent quality of the material and the special design of the handle ensure comfortable use of the fireplace.
MODERN DESIGN
An elegant and comfortable handle that can be easily adapted to your home interior (purchase option: gold-plated or nickel-plated handle).
The chamber under the hearth is equipped with a push to open mechanism - opening by pressing.
Enhanced the beauty of fire thanks to the rounded glass.
Technical data
Nominal power (kW) | 7 |
---|---|
Heating power range (kW) | 4 - 10 |
Thermal Efficiency (%) | 80.1 |
Flue gas temperature (oC) | 269 |
Max billet length (cm) | 25 |
COLOUR | Black |
CLOSING | Yes |
Door opening | Left |
Materials | Steel |
diameter of the flue gas outlet | 150 |
Air intake diameter (mm) | 100 |
Energy class | A |
---|---|
EEI | 105 |
Seasonal Energy Efficiency (%) | 70 |
Heat output for space heating (kW) | 7 |
CO emission (at 13% O2) ≤ given in % | 0.044 |
CO emission (mg/m3) | 555 |
Pollen emission (mg/m3) | 19 |
NOx emission (mg/m3) | 103 |
OGC emission (mg/m3) | 63 |
Flue gas mass flow (g/s) | 6.2 |
Certificates | Ecodesign, Designed for recuperation, BImSchV 2 |
---|
Equipment | Air intake - built in , Ashpan, Combustion chamber lining |
---|---|
FRONT | Steel front with ceramic glass |
Fuel type | Seasoned deciduous wood (humidity ≤20%) |
EAN | 5903751182481 |

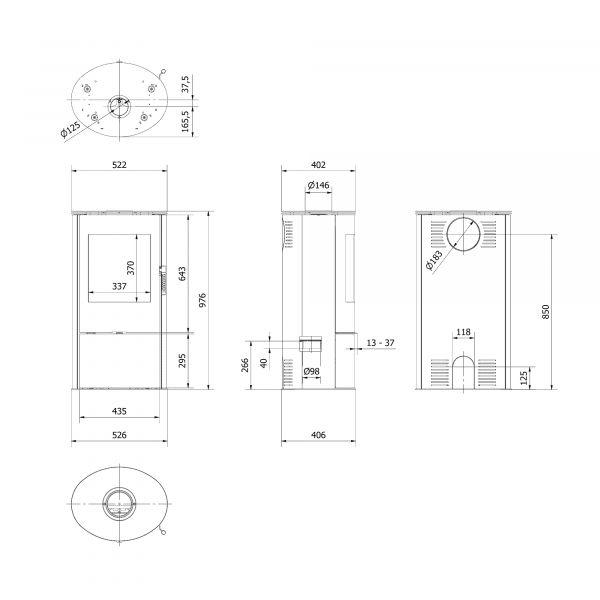

Width (cm) | 52.6 |
---|---|
Height (cm) | 97.6 |
Depth (cm) | 40.2 |
Weight (kg) | 104.09 |
